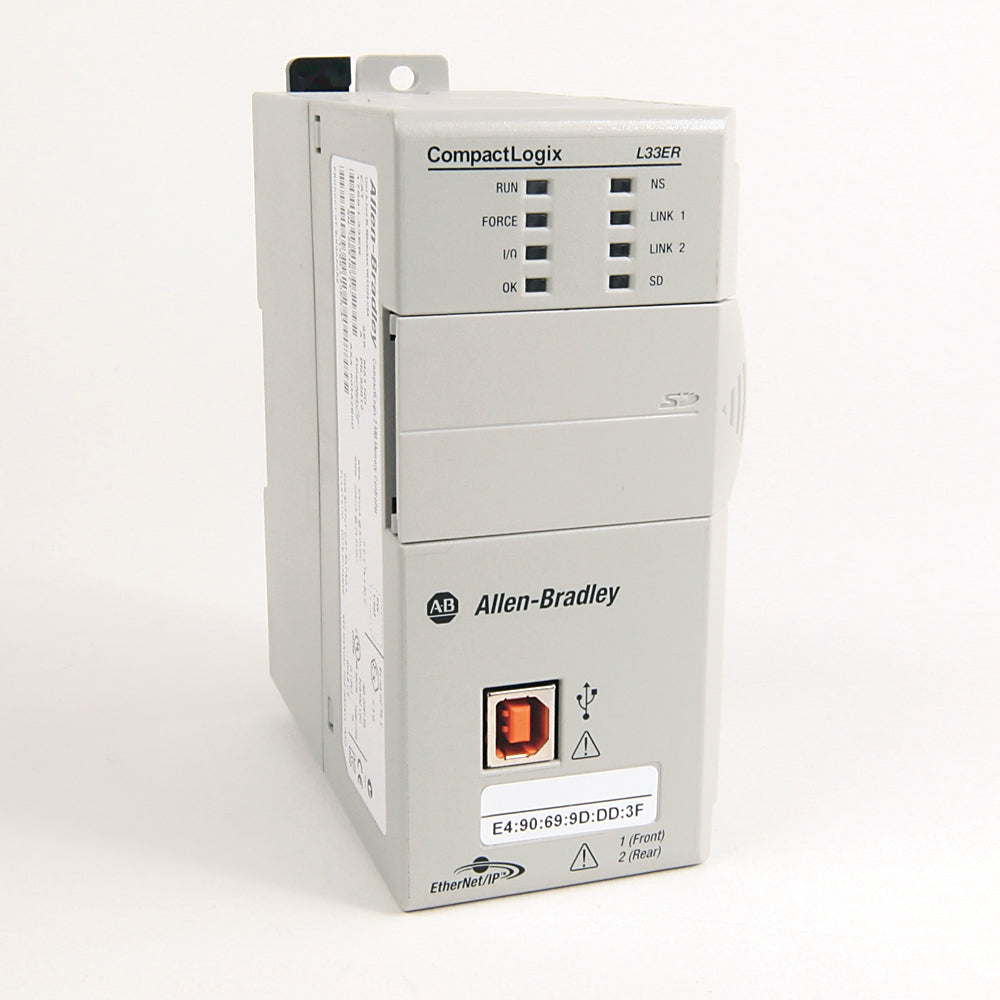

Allen-Bradley 1769-L33ER CompactLogix CPU

The Allen-Bradley 1769-L33ER CompactLogix 5370 is an expanded-memory modular programmable automation controller manufactured by Rockwell Automation, featuring dual Ethernet ports for mid-range industrial control.

Key Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Catalog Number: 1769-L33ER
• Product Series: CompactLogix 5370 (L3 Series)
• User Memory: 2 MB available user memory (Rockwell Automation, Publication 1769-TD005O-EN-P, “Technical Specifications – 1769 CompactLogix 5370 Controllers”)
• Integrated Communication Ports: 2x RJ45 EtherNet/IP ports with integrated switch supporting Device Level Ring (DLR) and linear network topologies (10/100 Mbps); 1x USB 2.0 port for programming
• EtherNet/IP Node Capacity: Supports up to 32 EtherNet/IP nodes (Rockwell Automation, Publication 1769-TD005O-EN-P, “Technical Specifications – 1769 CompactLogix 5370 Controllers”)
• Local I/O Expansion: Supports up to 16 local 1769 Compact I/O modules across up to 2 I/O banks total (one controller bank and one expansion bank; requires a 1769 expansion cable)
• Power Supply Requirements: Power supply distance rating: 4 modules. The controller must be installed within 4 module positions of a compatible 1769 power supply; verify specific distance ratings for all attached I/O modules per system design guidelines
• Non-volatile Memory: Standard factory configuration includes a 1 GB SD card (supports cards up to 2 GB); verify the actual card presence and condition for the specific unit prior to purchase
• Energy Storage: Internal capacitor-based energy storage eliminates lithium backup batteries
• Engineering Software: Verify the controller firmware revision and supported programming software version against the applicable Rockwell Automation compatibility documentation before deployment

System Configuration and Networking

The integrated dual-port EtherNet/IP switch supports Device Level Ring (DLR) and linear network topologies. Verify the required DLR supervisor configuration and network-device compatibility against the system design documentation. Please note that the standard 1769-L33ER does not include integrated CIP motion control (CIP motion is provided on the 1769-L33ERM). Ensure the controller is placed within 4 module slots of a compatible 1769 power supply, and check individual module distance ratings, backplane current draw, and the limit of up to 2 I/O banks total before installation.
