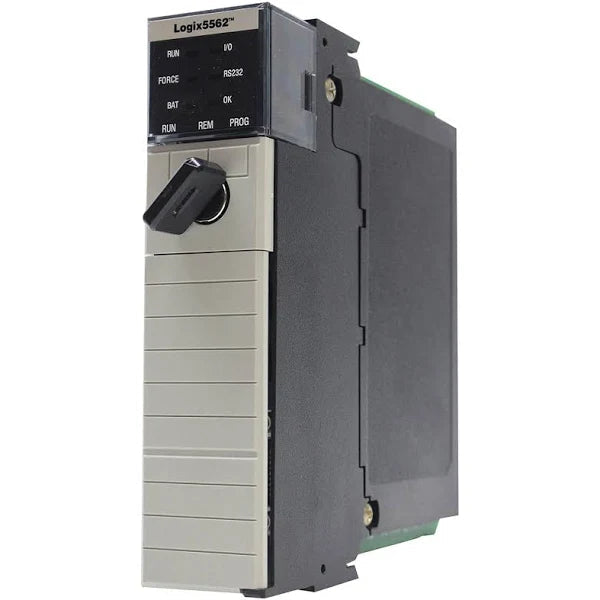

Allen-Bradley 1756-L62 ControlLogix CPU

The Allen-Bradley 1756-L62 ControlLogix 5562 is a modular programmable automation controller manufactured by Rockwell Automation, featuring 4 MB user memory for industrial control applications.

Key Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Catalog Number: 1756-L62
• Product Series: ControlLogix 5562
• User Memory: 4 MB available data and logic memory (Rockwell Automation Publication 1756-TD001S-EN-P, April 2023, p. 11)
• Integrated Communication Port: 1x RS-232 serial port (9-pin D-sub); no onboard Ethernet port (network communication requires an external 1756 communication module in the chassis)
• Non-volatile Memory Support: Supports optional 128 MB non-volatile memory via a compatible CompactFlash card (Rockwell Automation catalog number 1784-CF128)
• Memory Backup: Battery-backed retention (requires a compatible battery assembly based on the hardware series)
• Chassis Compatibility: Standard 1756 ControlLogix chassis
• Engineering Software: RSLogix 5000 programming software

System Configuration and Networking

Because the 1756-L62 does not include an integrated Ethernet interface, network communication with distributed I/O, supervisory networks, or operator interfaces requires one or more compatible 1756 communication modules installed in the local chassis, selected according to the target network architecture. Confirm slot availability, power supply capacity, battery status, and firmware revision before installation.

Product Lifecycle and Sourcing Notice

Rockwell Automation has categorized the 1756-L62 under official Discontinued lifecycle status (effective June 1, 2017). This discontinued controller may be relevant for maintenance, system continuity, and industrial spare parts sourcing. Confirm the exact hardware series letter, firmware build, and accessory requirements prior to purchase. Availability, unit condition, pricing, lead time, warranty terms, and shipping options will be confirmed individually in the quotation.

Request a Quote

Submit an inquiry with catalog number 1756-L62, required quantity, destination country, and application requirements.

Technical parameters are provided for model identification and engineering reference. Always verify the physical unit nameplate and official manufacturer technical literature prior to installation.
